Specifications
| Power Supply | 1PH 220V 60HZ 15AMP |
|---|---|

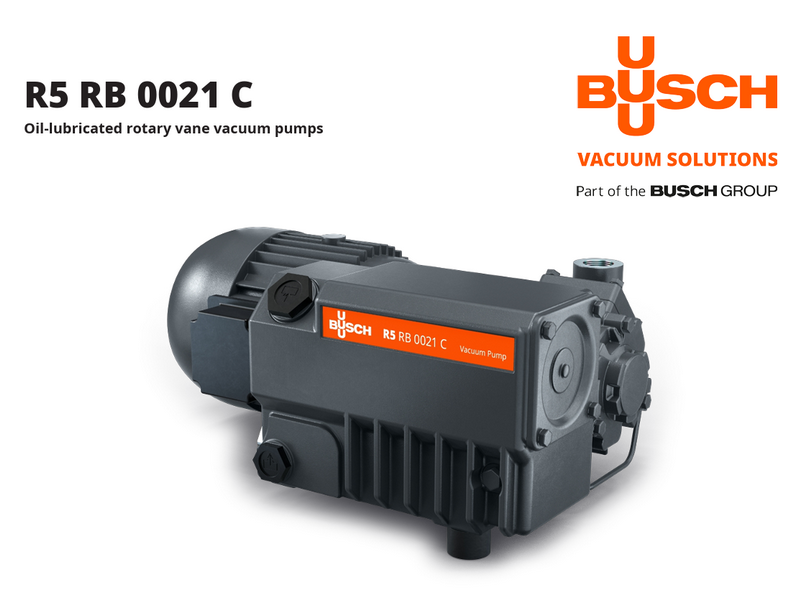

| Vacuum Pump | Busch 24m³/HR(2mbar) from Germany |
| Seal Bar Length | 450 mm(F)、430mm(LR) |
| Distance Between Sealing Bars | 380 mm(F)、370mm(LR) |
| Seal Bar Width | 6 mm |
| Chamber Height | 195mm (Including domed lid clearance) |

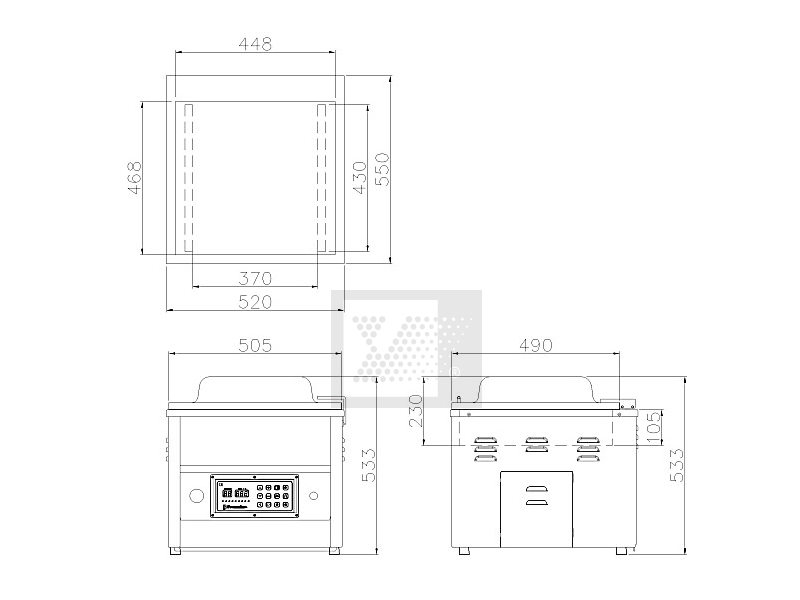

| Chamber Size | 17.6”x18.4”x9.1”(448x468x230mm) |
| Machine Size | 20.5”x21.7”x21” (520x550x533mm) |
| Machine Weight | 119 lbs / 54kg |
Features
- Made in Taiwan
- The standard PD-01 control panel
- PP plate for heigh adjustment
- SUS304 Stainless Steel Construction
- Italian imported vacuum top cover

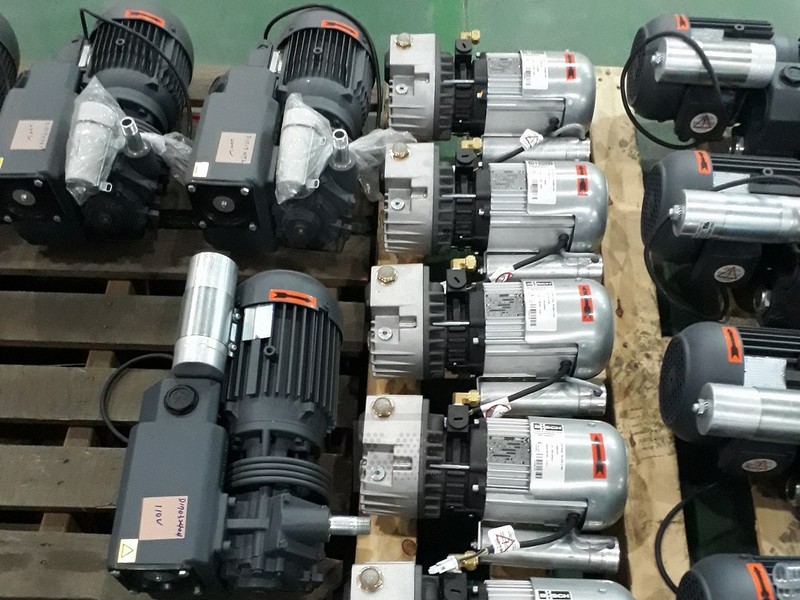

- Busch Vacuum Pump from Germany
- UL, CE Certified & Labeled
- Pump overload protection
- Emergency stop button
- Sealing timer protection
- Tray-type electrical panel: easy to repair and replace consumables.
Optional accessories
- Nitrogen filling equipment
- PNC-01 microprocessor control panel
- The PNC-01 version allows:
- store 14 sets of settings.
- Oil change indicator light
- Vacuum by percentage
- Soft air venting
- Pulse vacuum
