Specifications
| Power Supply | 3PH 220V 60HZ |
|---|---|
| Vacuum Pump | Busch 300m³/HR from Germany |
| Seal Bar Length | 1050 mm |
| Seal Bar Spacing | 580 mm |
| Seal Bar Width | 10mm |
| Cycle Speed | 3 – 5 cycles / min |
| Body material | SUS304 stainless steel |
| Weight | 588KG (Net Weight) |

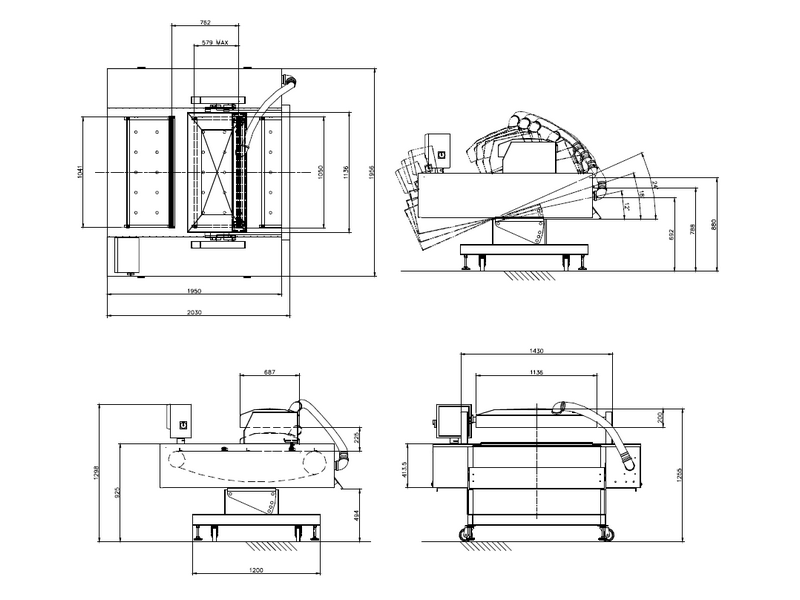

| Dimensions | 1960 (L) x 2050 (W) x 1300 (H) mm |
| Chamber Depth | 200mm |
Features
- Made in Taiwan
- Quick-Release Sealing Bar (Tool-Free Removal)
- PP plate for heigh adjustment
- SUS304 Stainless Steel Construction

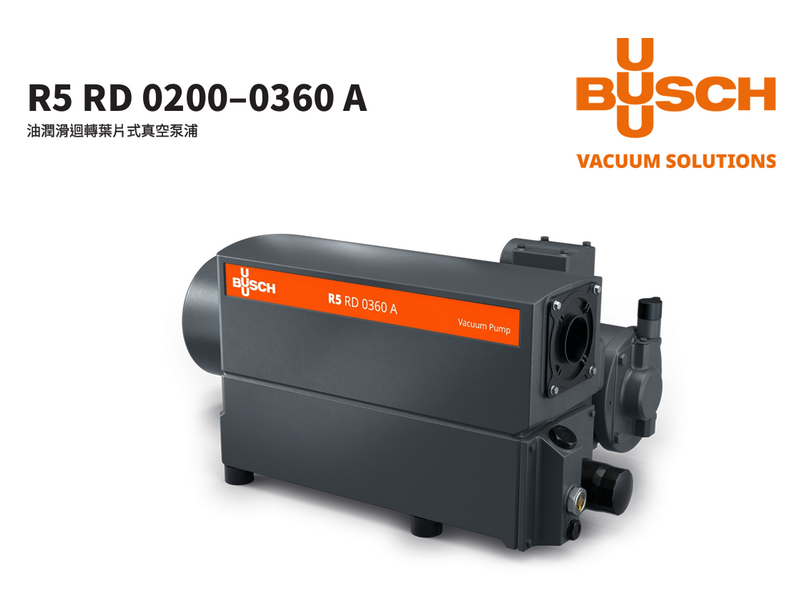

- Busch Vacuum Pump from Germany
- UL, CE Certified & Labeled
- Pump overload protection
- Emergency stop button
- Sealing timer protection
- Independent SUS304 Waterproof Electrical Control Box (IP65 Rated)
- PNC-01 microprocessor control panel
- The PNC-01 version allows:
- store 14 sets of settings.
- Oil change indicator light
- Vacuum by percentage
- Soft air venting
- Pulse vacuum
Optional accessories
- Customizable Vacuum Chamber Height
- Dual Upper Sealing Bars
- Upgraded High-Capacity Vacuum Pump
- PLC-Based Precision Sealing Temperature Control System
- Compatible with External Inkjet Coding Systems
