Specifications
| Power Supply | 3PH 220V 60HZ |
|---|---|
| Vacuum Pump | Busch 300m³/HR from Germany |
| Bottom Film Width | 514mm |
| Top Film Width | 524mm |
| Advance Stroke | 350mm |
| Molds | 1x1/2x1/2x2/3x1/3x2/4x1/4x2/6x1, and more. |
| Operational Speed | 6-8 cycles per minute (CPM). |
| Loading Zone | 5-Section Extended Filling Area |
| Body material | SUS304 Stainless Steel |
| Weight | 1,400KG |

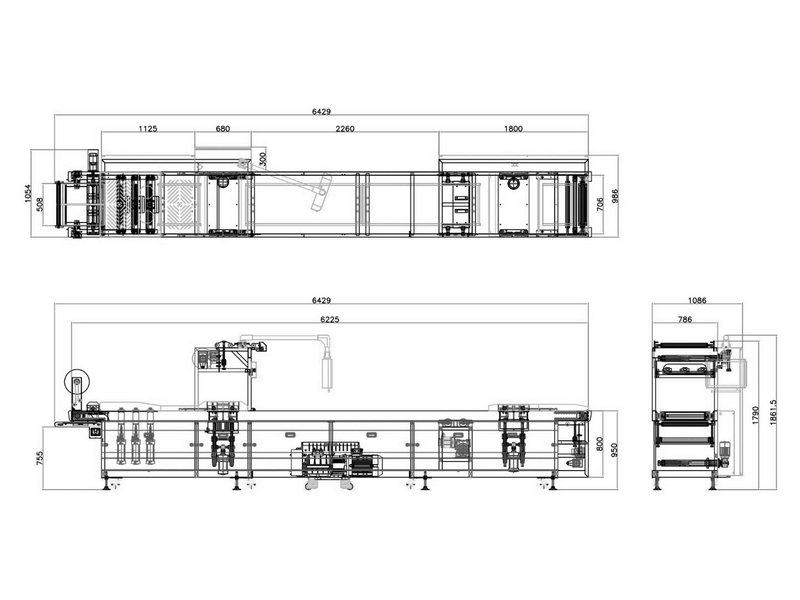

| Dimensions | 6,429 (L) x 1,086 (W) x 1,861.5 (H) mm |
Features
- Phase Loss Protection
- Pump Overload Protection
- Safety Gate System
- Safety Guards with Auto-Shutoff
- Emergency Stop Button
- Three-Color LED Signal Tower
- Quick-Change Mold Design
- Seamless Forming, Vacuuming, Sealing, and Cutting Workflow
- Control System: Advanced South Korean PLC with 7" Color Touchscreen HMI
- Electrical System: South Korean Independent Electrical Control Cabinet featuring LS Electric components.
- Chassis Construction: Heavy-duty Full SUS304 Stainless Steel structure.
- Drive System: High-Precision South Korean LS Servo Motor Drive System.

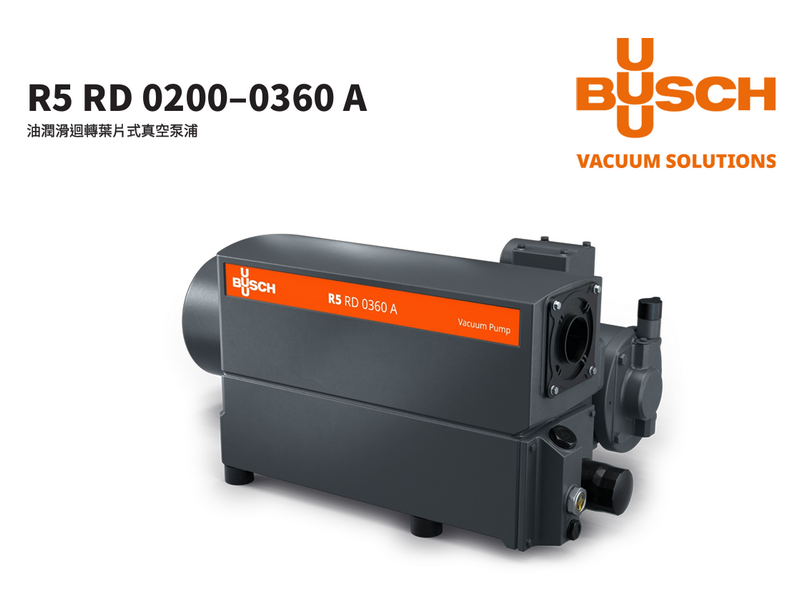

- Vacuum System: High-performance German-imported BUSCH Vacuum Pump.
- Transmission System: Genuine Italian Regina High-Performance Gripper Chains.
- Production Line Integration: Customizable design for seamless integration with Metal Detectors, Checkweighers, and Smart Conveyor Systems.
Optional accessories
- Film Registration Mark Sensor Module
- Bottom Film Safety Guard / Cover
- High-Resolution Inkjet Coding System
- Thermal Transfer Date Coder (Standard Module)
