Specifications
| Power Supply | 3PH 220V 60HZ 25AMP |
|---|---|

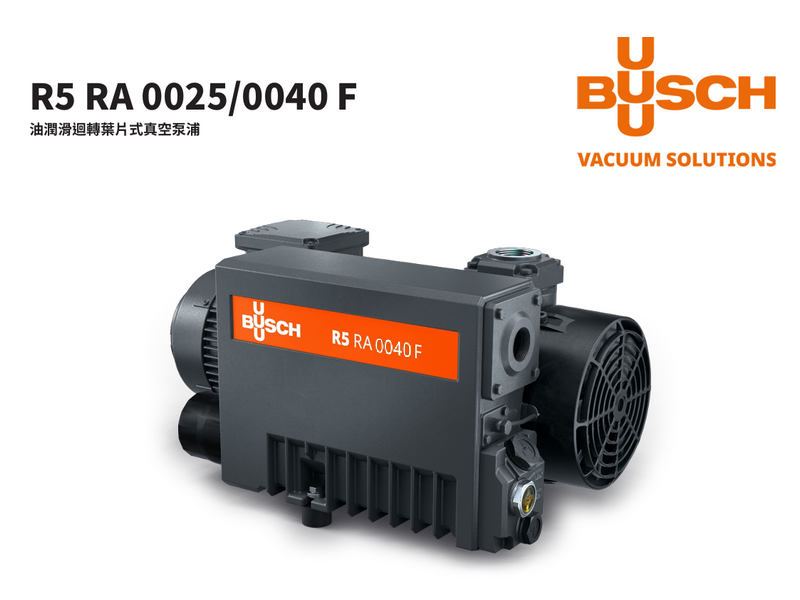

| Vacuum Pump | Busch 40m³/HR from Germany |
| Seal Bar Length | 540mm x 4 bars |
| Seal Bar Spacing | 425mm |
| Seal Bar Width | 10mm |
| Top cover material | SUS304 stainless steel top cover |
| Body material | SUS304 stainless steel |
| Weight | 298 KG (Net Weight) |

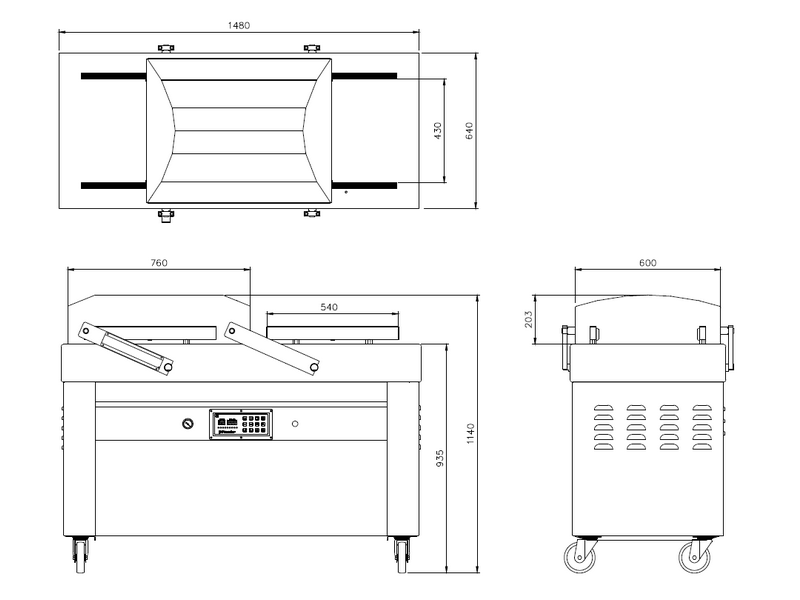

| Dimensions | 1,480 (L) x 640 (W) x 1,140 (H) mm |
| Vacuum Chamber Size | 760 (L) x 600 (W) x 203 (H) mm |
Features
- Made in Taiwan
- Quick-Release Sealing Bar (Tool-Free Removal)
- PP plate for heigh adjustment
- SUS304 Stainless Steel Construction
- Busch Vacuum Pump from Germany
- UL, CE Certified & Labeled
- Pump overload protection
- Emergency stop button
- Sealing timer protection
- Independent SUS304 Waterproof Electrical Control Box (IP65 Rated)
- PNC-01 microprocessor control panel
- The PNC-01 version allows:
- store 14 sets of settings.
- Oil change indicator light
- Vacuum by percentage
- Soft air venting
- Pulse vacuum
Optional accessories
- Nitrogen Gas Flushing Kit (8-Hole)
- Pump upgrade
- Bi-Active Sealing System (Top & Bottom Heating)
- Mechanical Bag Cutting System
- Automatic Lid Lifting / Auto-Swing Lid System
