Specifications
| Power Supply | 3PH 220V 60HZ 45AMP |
|---|---|

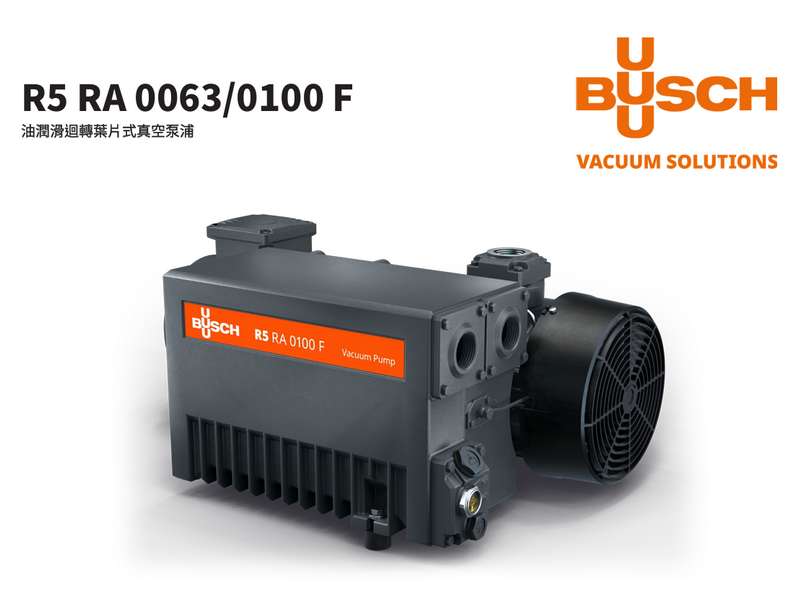

| Vacuum Pump | Busch 100m³/HR from Germany |
| Seal Bar Length | 634mm x 4 bars |
| Seal Bar Width | 10mm |
| Seal Bar Spacing | 715mm |
| Top cover material | SUS304 stainless steel top cover |
| Body material | SUS304 stainless steel |
| Weight | 552 KG (Net Weight) |

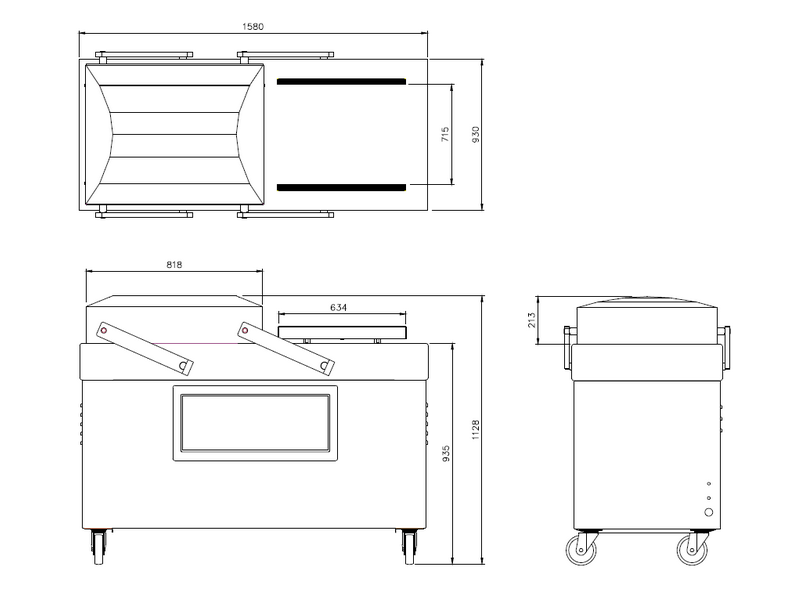

| Dimensions | 1,580 (L) x 930 (W) x1,128 (H) mm |
| Vacuum Chamber Size | 818 (L) x 890 (W) x 213 (H) mm |
Features
- Made in Taiwan
- Quick-Release Sealing Bar (Tool-Free Removal)
- PP plate for heigh adjustment
- SUS304 Stainless Steel Construction
- Busch Vacuum Pump from Germany
- UL, CE Certified & Labeled
- Pump overload protection
- Emergency stop button
- Sealing timer protection
- Independent SUS304 Waterproof Electrical Control Box (IP65 Rated)
- PNC-01 microprocessor control panel
- The PNC-01 version allows:
- store 14 sets of settings.
- Oil change indicator light
- Vacuum by percentage
- Soft air venting
- Pulse vacuum
Optional accessories
- Nitrogen Gas Flushing Kit (8-Hole)
- Pump upgrade
- Bi-Active Sealing System (Top & Bottom Heating)
- Mechanical Bag Cutting System
- Automatic Lid Lifting / Auto-Swing Lid System
- New Patented Spring Tension System for Double Chambers
- Date Coding System
- HMI with Color Touch Screen Control Panel
- Anti-Pinch Safety Device for Vacuum Lid
