Specifications
| Power Supply | 1PH 220V 60HZ 15AMP |
|---|---|

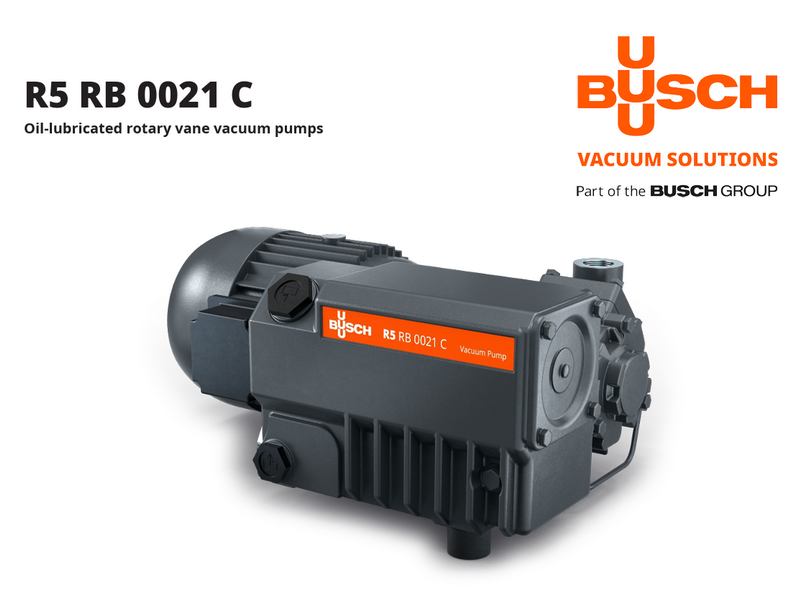

| Vacuum Pump | Busch 24m³/HR(2mbar) from Germany |
| Seal Bar Length | 540mm(LR) |
| Distance Between Sealing Bars | 450mm |
| Seal Bar Width | 6mm |
| Lid Material | SUS304 Stainless Steel Lid (with Window) |
| Body Material | SUS304 Stainless Steel |
| Machine Weight | 309lbs/140kg |

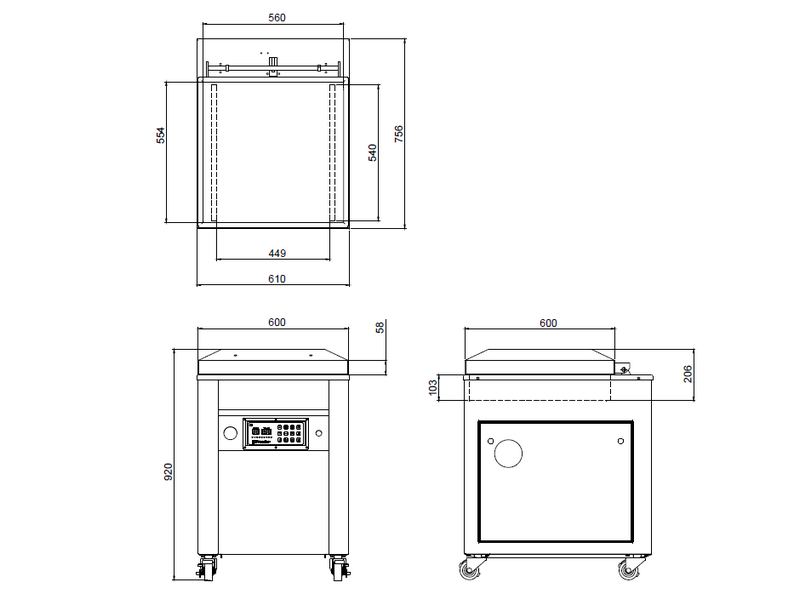

| Machine Size | 24”x30”x36” (610x756x920mm) |
| Chamber Size | 22”x21.8” x7.8”(560x560x200mm) |
Features
- Made in Taiwan
- The standard PD-01 control panel
- PP plate for heigh adjustment
- SUS304 Stainless Steel Construction
- Busch Vacuum Pump from Germany
- UL, CE Certified & Labeled
- Pump overload protection
- Emergency stop button
- Sealing timer protection
- Independent SUS304 Waterproof Electrical Control Box (IP65 Rated)
Optional accessories
- Nitrogen filling equipment
- PNC-01 microprocessor control panel
- The PNC-01 version allows:
- store 14 sets of settings.
- Oil change indicator light
- Vacuum by percentage
- Soft air venting
- Pulse vacuum
