Specifications
| Power Supply | 3PH 220V 60HZ 15AMP |
|---|---|
| Vacuum Pump | Busch 63m³/HR from Germany |
| Seal Bar Length | 660mm (LR) |
| Seal Bar Width | 10mm |
| Seal Bar Spacing | 720mm |
| Top cover material | SUS304 stainless steel top cover |
| Body material | SUS304 stainless steel |
| Machine Weight | 600lbs/272kg |

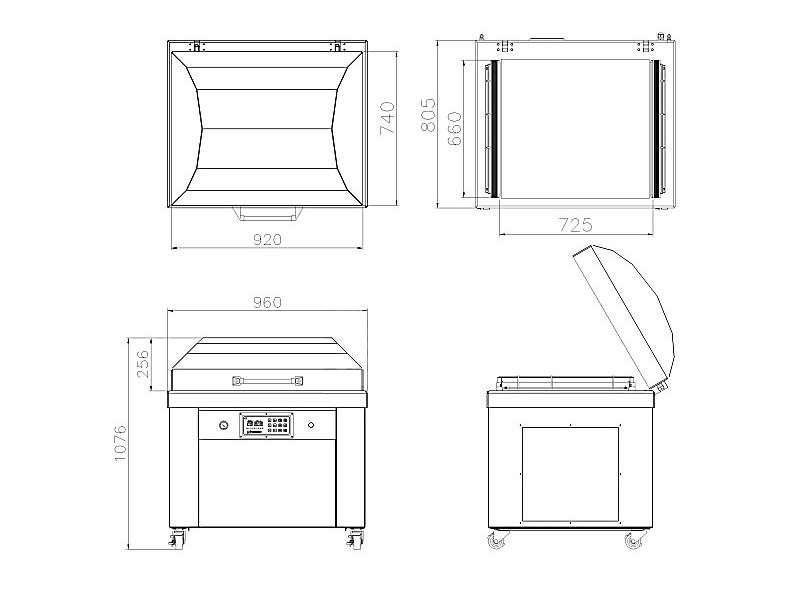

| Machine Size | 38”x32”x42” (960*805*1075(mm)) |
| Chamber Size | 36″×29″×10” (920*740*255mm) |
Features
- Made in Taiwan
- PP plate for heigh adjustment
- SUS304 Stainless Steel Construction

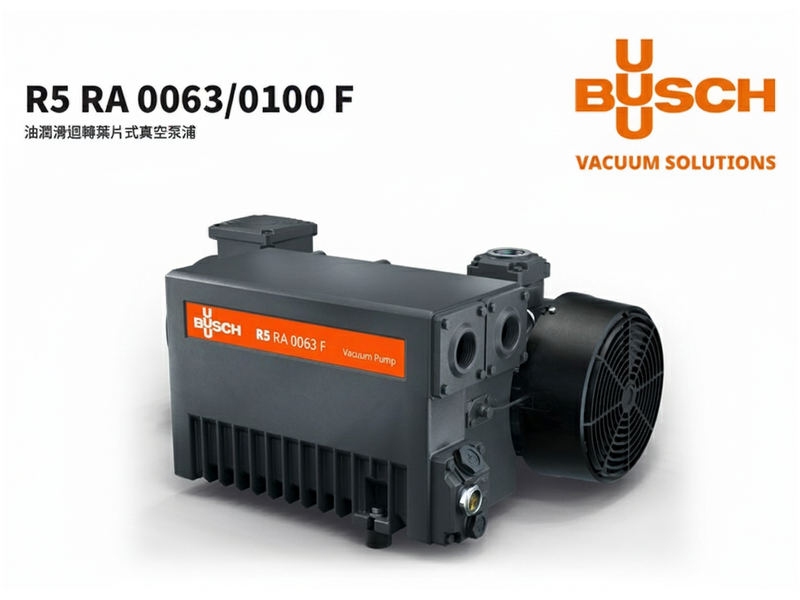

- Busch Vacuum Pump from Germany
- UL, CE Certified & Labeled
- Pump overload protection
- Emergency stop button
- Sealing timer protection
- Independent SUS304 Waterproof Electrical Control Box (IP65 Rated)
- PNC-01 microprocessor control panel
- The PNC-01 version allows:
- store 14 sets of settings.
- Oil change indicator light
- Vacuum by percentage
- Soft air venting
- Pulse vacuum
Optional accessories
- Nitrogen Gas Flushing Kit (8-Hole)
- Pump upgrade
