Specifications
| Power Supply | 1PH 220V 60HZ 15AMP |
|---|---|

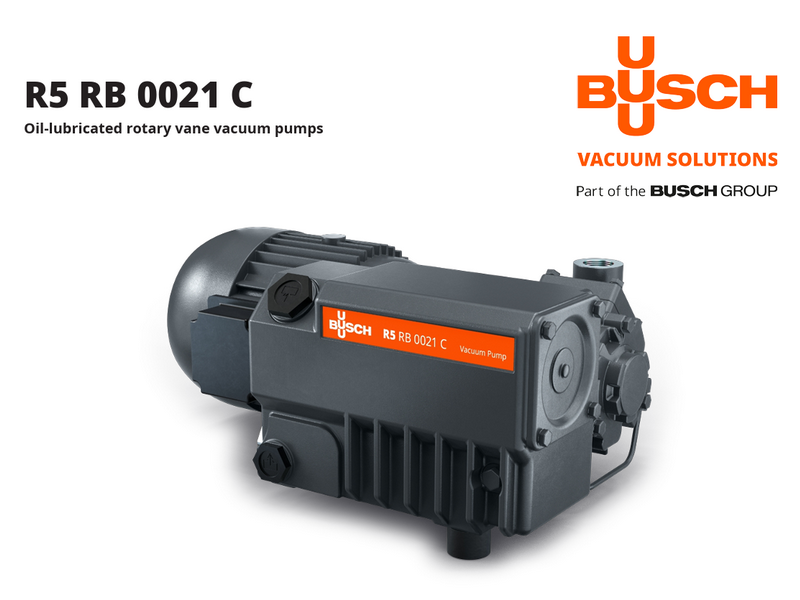

| Vacuum Pump | Busch 24m³/HR(2mbar) from Germany |
| Seal Bar Length | 540mm(FB) |
| Seal Bar Width | 6mm |
| Distance Between Sealing Bars | 450mm |
| Top cover material | Transparent acrylic 37mm |
| Body Material | SUS304 Stainless Steel |
| Machine Weight | 440¹⁵/₁₆ lbs/200kg |

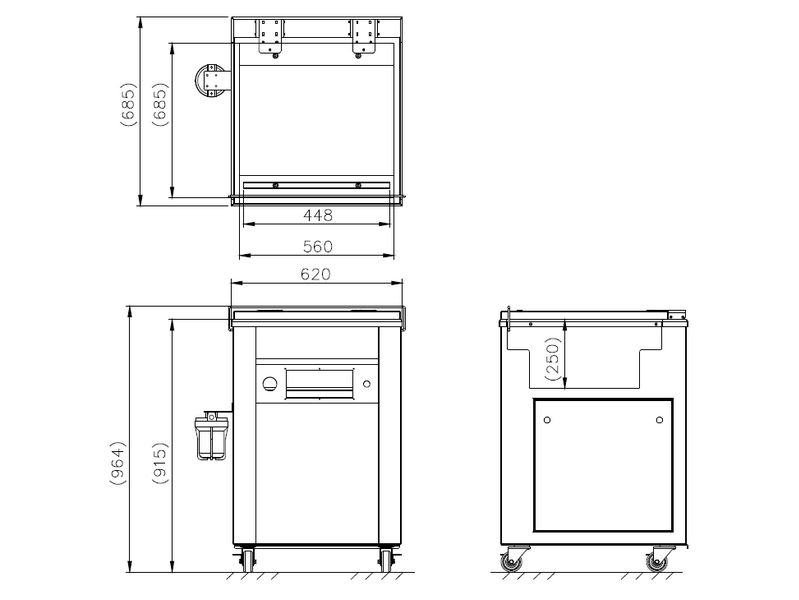

| Machine Size | 24.4”x26.9”x37.2” (620x682x945mm) |
| Chamber Size | 21.2”x17.7”x9.8”(540x450x250mm) |
Features
- Made in Taiwan
- The standard PD-01 control panel
- PP plate for heigh adjustment
- 4-Set Magnetic Bag Clamping System
- SUS304 Stainless Steel Construction
- Busch Vacuum Pump from Germany
- Ball Valve Drainage & Dust Filter Design (Ideal for Liquid and Powder Products)
- UL, CE Certified & Labeled
- Pump overload protection
- Emergency stop button
- Sealing timer protection
- Independent SUS304 Waterproof Electrical Control Box (IP65 Rated)
Optional accessories
- Nitrogen Gas Flushing Kit (4-Hole x 2)
- PNC-01 microprocessor control panel
- The PNC-01 version allows:
- store 14 sets of settings.
- Oil change indicator light
- Vacuum by percentage
- Soft air venting
- Pulse vacuum
