Specifications
| Power Supply | 1PH 220V 60HZ 15AMP |
|---|---|
| Vacuum Pump | Busch 24m³/HR(2mbar) from Germany |
| Seal Bar Length | 660mm(F) |
| Seal Bar Width | 6mm |

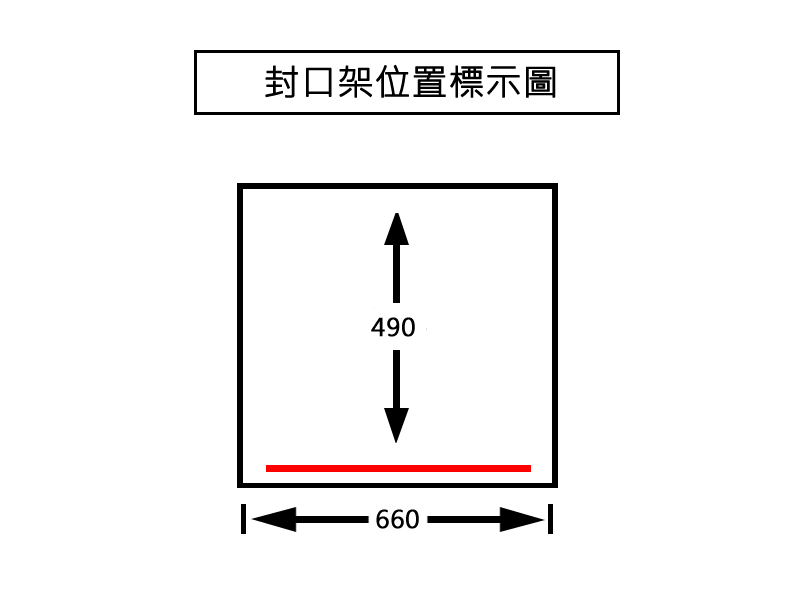

| Distance Between Sealing Bars | 490mm |
| Top cover material | Transparent acrylic (40mm) |
| Lid Opening Mechanism | Automatic Pneumatic Lid Opening System |
| Body Material | SUS304 Stainless Steel |
| Machine Weight | 507lbs/230kg |

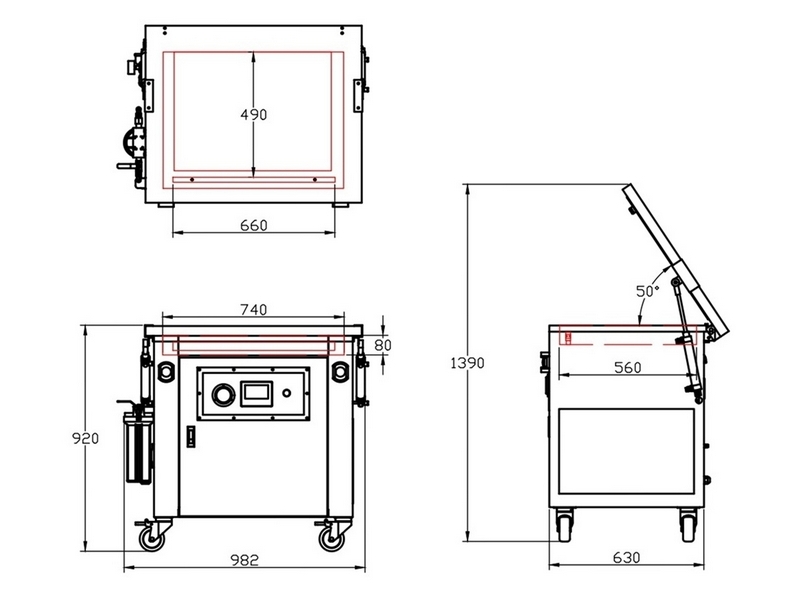

| Machine Size | 24”x30”x36” (880x670x1390mm) |
| Chamber Size | 22”x21.8” x7.8”(740x560x80mm) |
Features
- Made in Taiwan
- 4.3" HMI Touch Screen Control Panel
- SUS304 Stainless Steel Construction
- Full Pneumatic System Configured with PE Tubing
- Standard Dust Filter Included
- 3-Set Parameter Memory (Recipes)
- Vacuum Pump: BUSCH (Made in Germany)
- CE-Certified 24V Low-Voltage Control Panel & Electronics
- Pump overload protection
- Emergency stop button
- Sealing timer protection
- Adjustable Parameters: Vacuum, Sealing, Vibration, Re-Vacuum, and Cooling.
- Heavy-Duty Swivel Casters & Independent Power Control Cabinet
Optional accessories

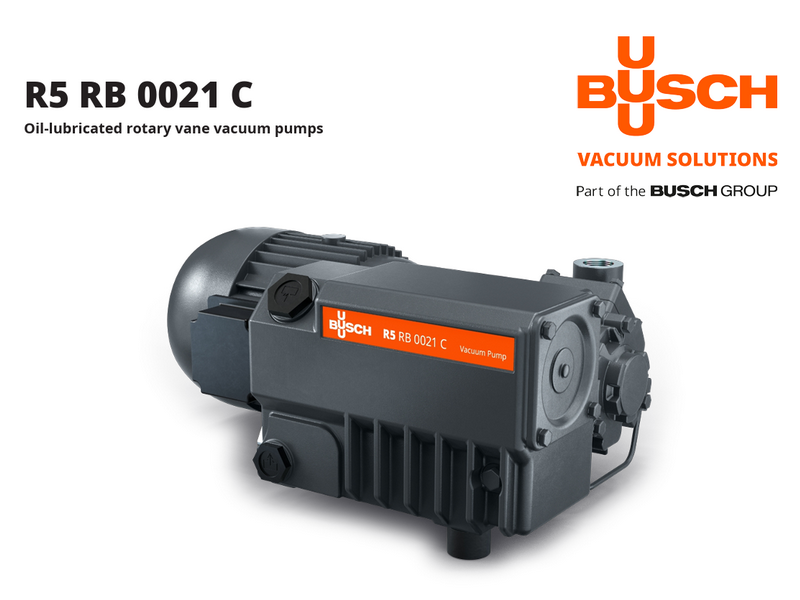

- Upgraded to Original German BUSCH R5 Oil-Sealed Vacuum Pump (48 m³/hr)
- 10mm Impulse Sealing Wire
