Specifications
| Power Supply | 3PH 220V 60HZ 15AMP |
|---|---|
| Vacuum Pump | Busch 40m³/HR From Germany |
| Seal Bar Length | 770mm(FB) |
| Seal Bar Width | 6mm |
| Seal Bar Spacing | 420mm |
| Top cover material | SUS304 stainless steel top cover |
| Body material | SUS304 stainless steel |
| Machine Weight | 432.12 lbs/196kg |

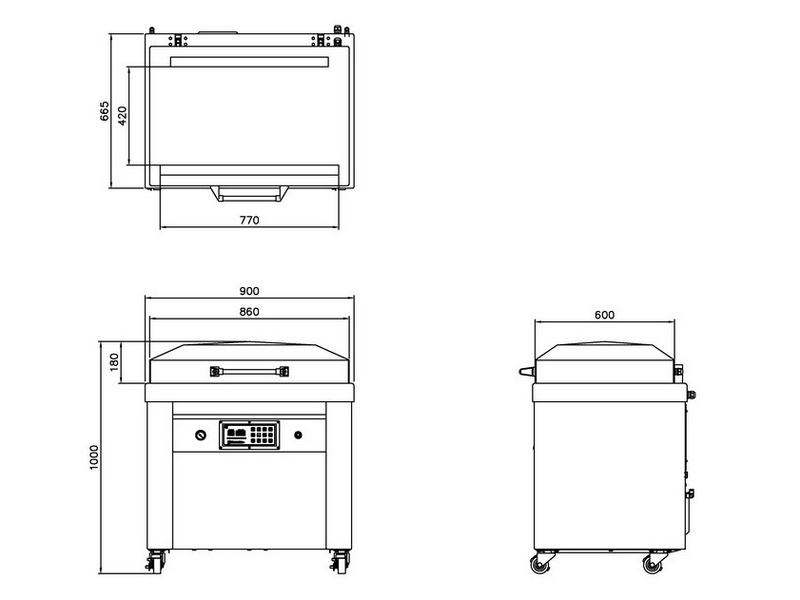

| Machine Size | 35.43”x26.18”x39.37” (900x665x1000mm) |
| Chamber Size | 33.86”x25.98” x7.09”(860x660x180mm) |
Features
- Made in Taiwan
- The standard PD-01 control panel
- PP plate for heigh adjustment
- SUS304 Stainless Steel Construction

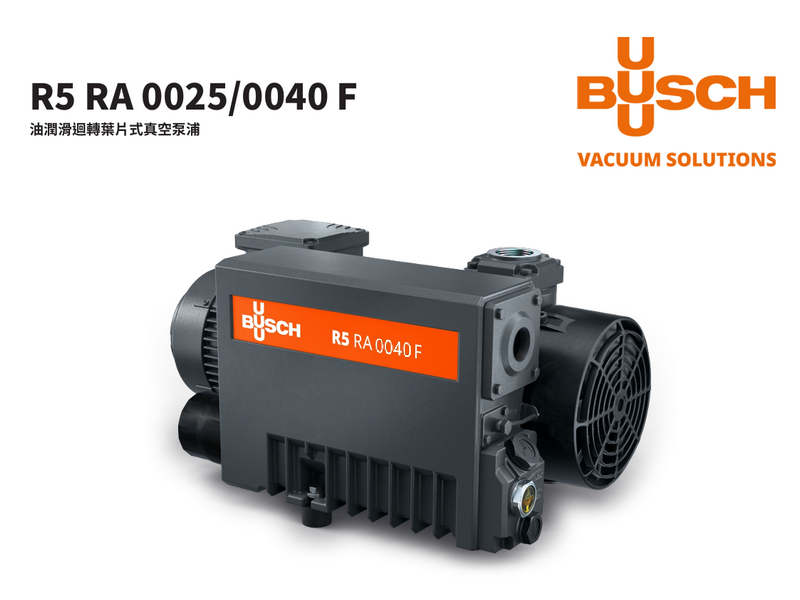

- Busch Vacuum Pump from Germany
- UL, CE Certified & Labeled
- Pump overload protection
- Emergency stop button
- Sealing timer protection
- Independent SUS304 Waterproof Electrical Control Box (IP65 Rated)
Optional accessories
- Nitrogen Gas Flushing Kit (4-Hole x 2)
- PNC-01 microprocessor control panel
- The PNC-01 version allows:
- store 14 sets of settings.
- Oil change indicator light
- Vacuum by percentage
- Soft air venting
- Pulse vacuum
