Specifications
| Power Supply | 3PH 220V 60HZ 15AMP |
|---|---|
| Vacuum Pump | Busch 63m³/HR from Germany |
| Seal Bar Length | 900mm(FB) |
| Seal Bar Width | 10mm |
| Top cover material | SUS304 stainless steel top cover |
| Body material | SUS304 stainless steel |
| Seal Bar Spacing | 550mm |

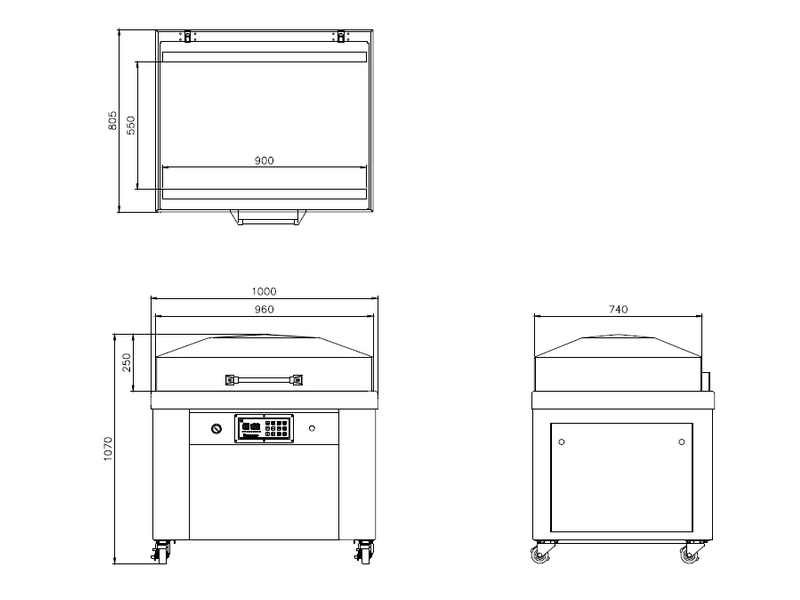

| Machine Size | 39.4”x31.7”x42.1” (1000x805x1070) |
| Chamber Size | 37.8”x29.13”x9.8” (960x740x250) |
Features
- Made in Taiwan
- PP plate for heigh adjustment
- SUS304 Stainless Steel Construction

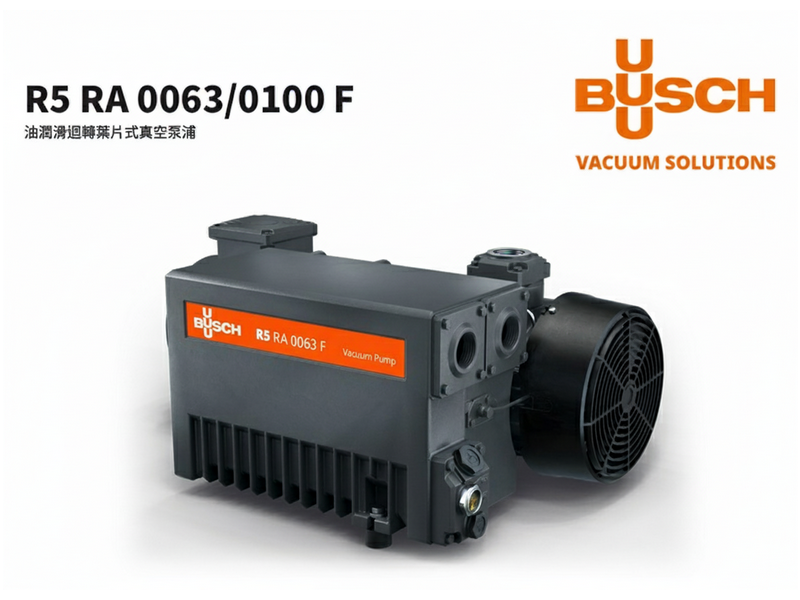

- Busch Vacuum Pump from Germany
- UL, CE Certified & Labeled
- Pump overload protection
- Emergency stop button
- Sealing timer protection
- Independent SUS304 Waterproof Electrical Control Box (IP65 Rated)
- PNC-01 microprocessor control panel
- The PNC-01 version allows:
- store 14 sets of settings.
- Oil change indicator light
- Vacuum by percentage
- Soft air venting
- Pulse vacuum
Optional accessories
- Nitrogen Gas Flushing Kit (8-Hole)
- Pump upgrade
- Top cover size: 10” and 12” (flexibly choose)
